eXotic Meta II Stem 31.8 Oversize Clamp
Forged 6061 T6 Al Stem

Hover over large image to Zoom in+

^^^^^^^^^^^^^
Total of 8 images
31.8 70mm
31.8 80mm
31.8 90mm
31.8 120mm
31.8 130mm
Size:
31.8 70mm


Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

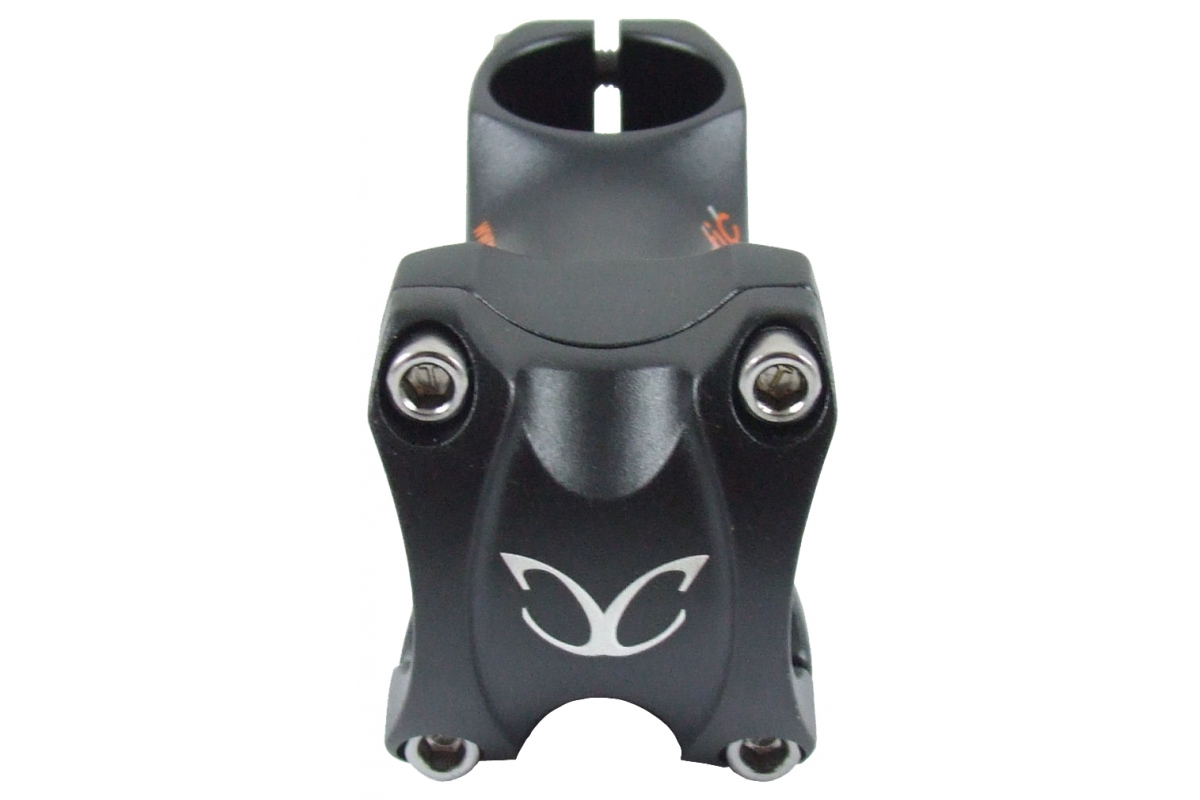

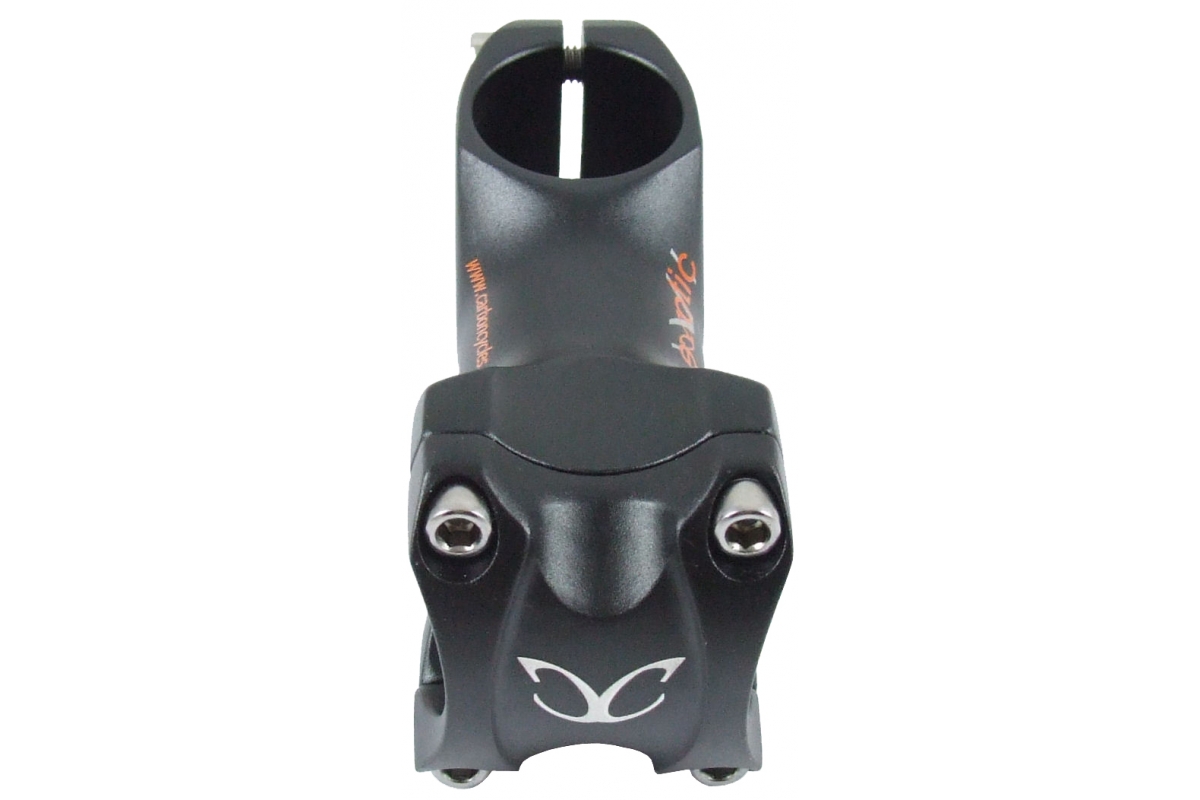

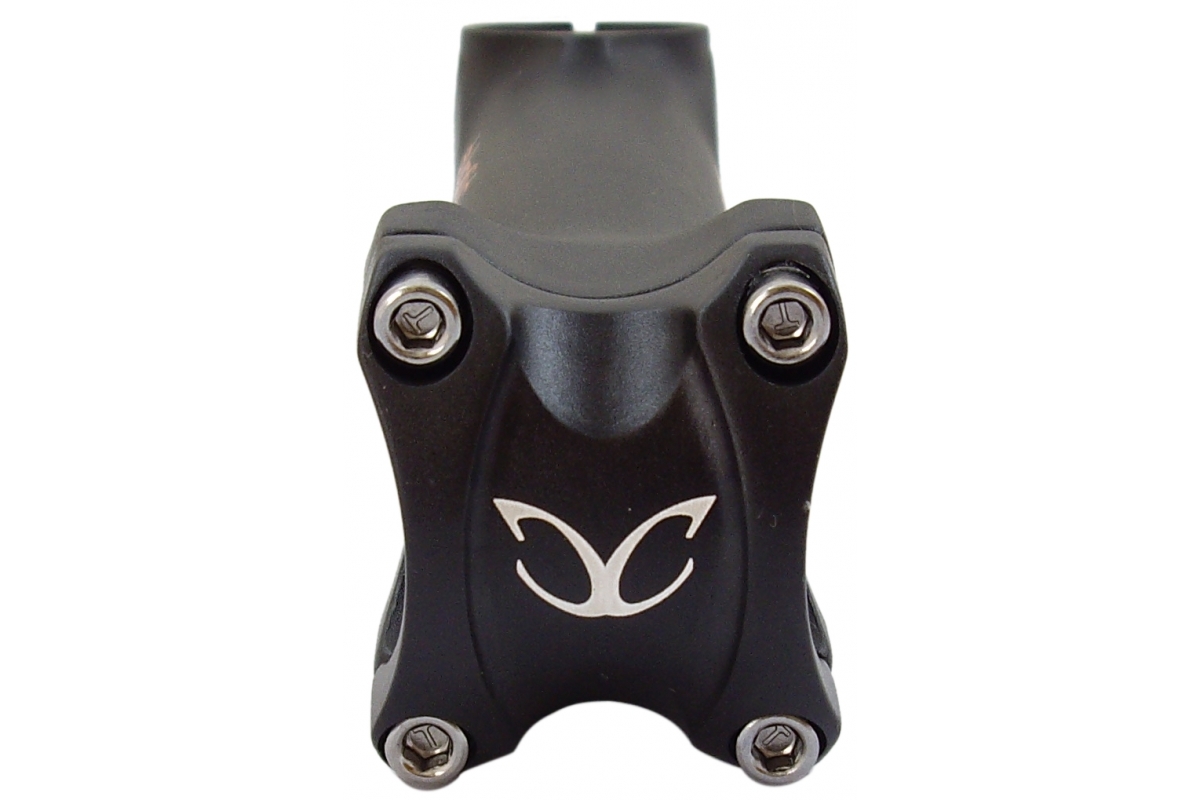

The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

MatriX MatriX is the manufacture process for melding aluminum or alloy with carbon fiber. It allows our components to take advantage of the strengths of both materials. Carbon fiber is light and strong and alloy is heavy but flexible, so in matriX we get the best of both material's properties.

Specifications:

  • Alloy: Fully CNC machined 6061 T6
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm Oversize
  • Angle: +/-8 degree
  • Bolts: 6 x high grade M5 stainless steel with captive washers

  • Extension: 70mm
  • Weight: 167g



  • UPC: 5055429909934
    Sponsorships and Product Reviews
    Size:
    31.8 80mm


    Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

    The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

    MatriX MatriX is the manufacture process for melding aluminum or alloy with carbon fiber. It allows our components to take advantage of the strengths of both materials. Carbon fiber is light and strong and alloy is heavy but flexible, so in matriX we get the best of both material's properties.

    Specifications:

  • Alloy: Fully CNC machined 6061 T6
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm Oversize
  • Angle: +/-8 degree
  • Bolts: 6 x high grade M5 stainless steel with captive washers

  • Extension: 80mm
  • Weight: 167g



  • UPC: 5055429909934
    Sponsorships and Product Reviews
    Size:
    31.8 90mm


    Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

    The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

    MatriX MatriX is the manufacture process for melding aluminum or alloy with carbon fiber. It allows our components to take advantage of the strengths of both materials. Carbon fiber is light and strong and alloy is heavy but flexible, so in matriX we get the best of both material's properties.

    Specifications:

  • Alloy: Fully CNC machined 6061 T6
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm Oversize
  • Angle: +/-8 degree
  • Bolts: 6 x high grade M5 stainless steel with captive washers

  • Extension: 90mm
  • Weight: 167g



  • UPC: 5055429909934
    Sponsorships and Product Reviews
    Size:
    31.8 120mm


    Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

    The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

    MatriX MatriX is the manufacture process for melding aluminum or alloy with carbon fiber. It allows our components to take advantage of the strengths of both materials. Carbon fiber is light and strong and alloy is heavy but flexible, so in matriX we get the best of both material's properties.

    Specifications:

  • Alloy: Fully CNC machined 6061 T6
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm Oversize
  • Angle: +/-8 degree
  • Bolts: 6 x high grade M5 stainless steel with captive washers

  • Extension: 120mm
  • Weight: 186g



  • UPC: 5055429909934
    Sponsorships and Product Reviews
    Size:
    31.8 130mm


    Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

    The four bolt chamfered faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

    MatriX MatriX is the manufacture process for melding aluminum or alloy with carbon fiber. It allows our components to take advantage of the strengths of both materials. Carbon fiber is light and strong and alloy is heavy but flexible, so in matriX we get the best of both material's properties.

    Specifications:

  • Alloy: Fully CNC machined 6061 T6
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm Oversize
  • Angle: +/-8 degree
  • Bolts: 6 x high grade M5 stainless steel with captive washers

  • Extension: 130mm
  • Weight: 190g



  • UPC: 5055429909934
    Sponsorships and Product Reviews
    Only show in stock items
    Ship To

    code
    CC-
    M053108
    31.8, 80mm



    US $32.79


    M053112
    31.8, 120mm



    US $28.89 Out of Stock

    M053113
    31.8, 130mm
    50% Off (already discounted). Minimum Quantity 2


    US $14.45 ea


    M053107
    31.8, 70mm



    US $30.49


    M053109
    31.8, 90mm



    US $32.79 Out of Stock
