 CC-M1822052

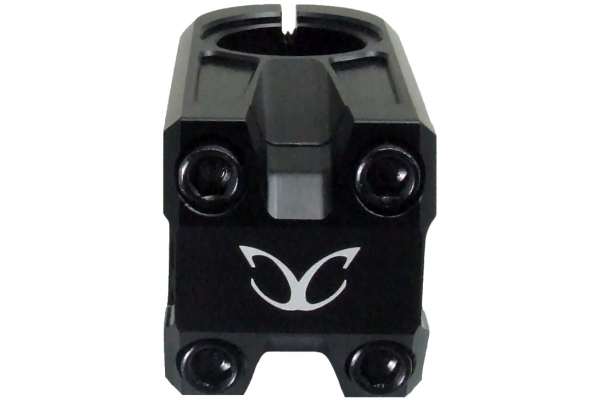

eXotic CREATURE BMX Stem
6061 T6 Al Stem Bore: 22.2mm, Ext: 52mm

Hover over large image to Zoom in+

Total of 3 images
22.2, 52mm



Described as bomb proof. For tough use.

Detailed CNC machining not only minimises weight but also reduces stresses on handle bars and steerer. The top is also recessed for the steerer top cap.

Made from from 6061 T6 alloy giving strength and toughness secured by M8 clamping bolts - one of the biggest bolts for stems.

Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other.

Specifications:
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 22.2mm
  • Stack height: 30mm
  • Extension: 52mm
  • Angle: 0 degree
  • Fixing bolts: M8x25mm long with captive washers
  • Laser etched face plate logo

    Total Weight: 253g (CC-M1822052 incl 6 x high grade M8 stainless steel bolts @66g)



    UPC: 5055429912989
    Sponsorships and Product Reviews
  • Only show in stock items
    Ship To

    code
    CC-
    M1822052
    22.2, 52mm



    US $42.69

    Sorry We're Out Of Stock :(

    for stock alerts uncheck Only show in stock items
