Hover over large image to Zoom in+

^^^^^^
Total of 4 images
31.8 80mm
31.8 100mm
31.8 90mm
Length:
31.8 80mm




UPC: 5055429912941

Sponsorships and Product Reviews
Length:
31.8 100mm, 31.8 90mm

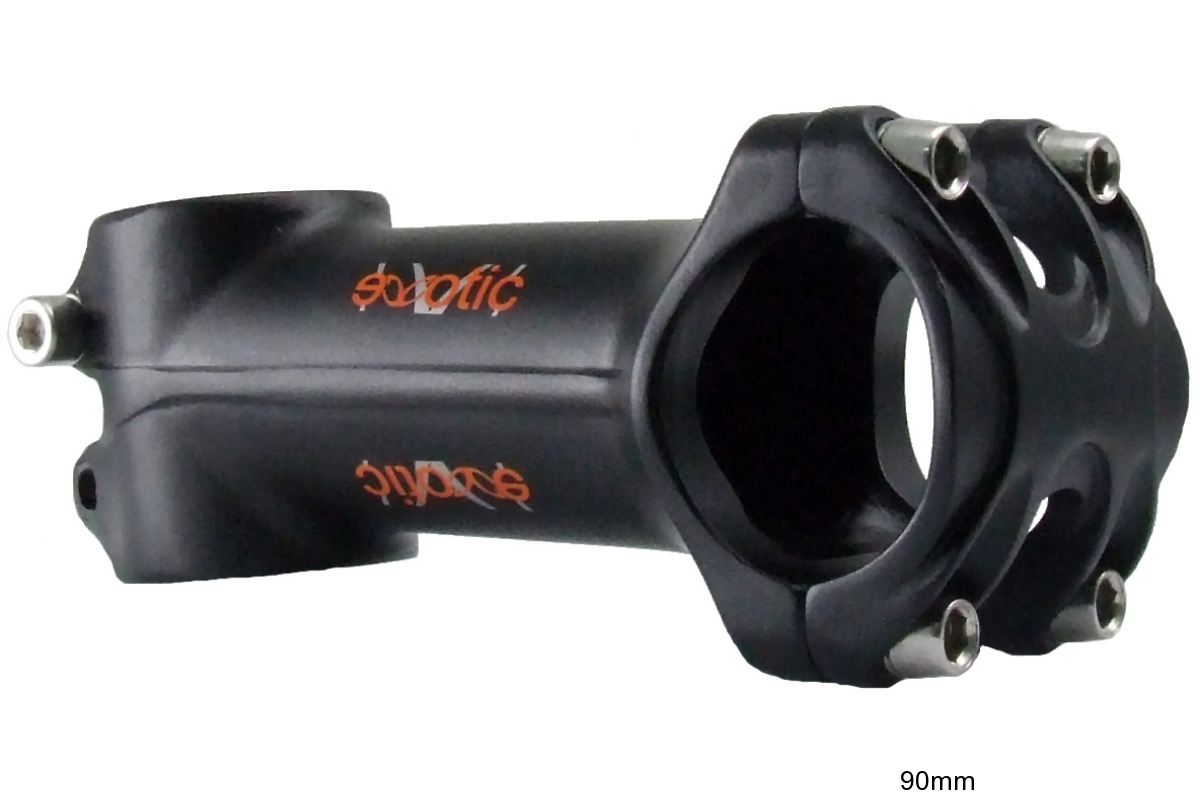

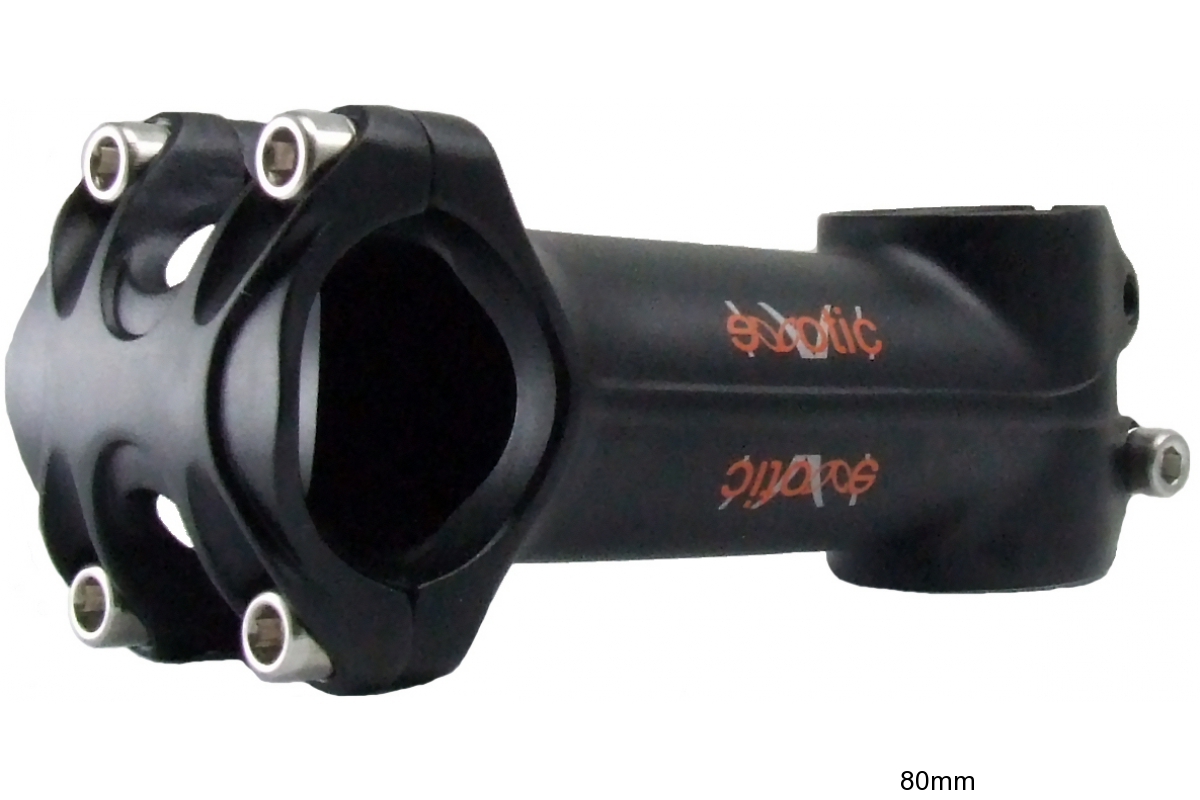

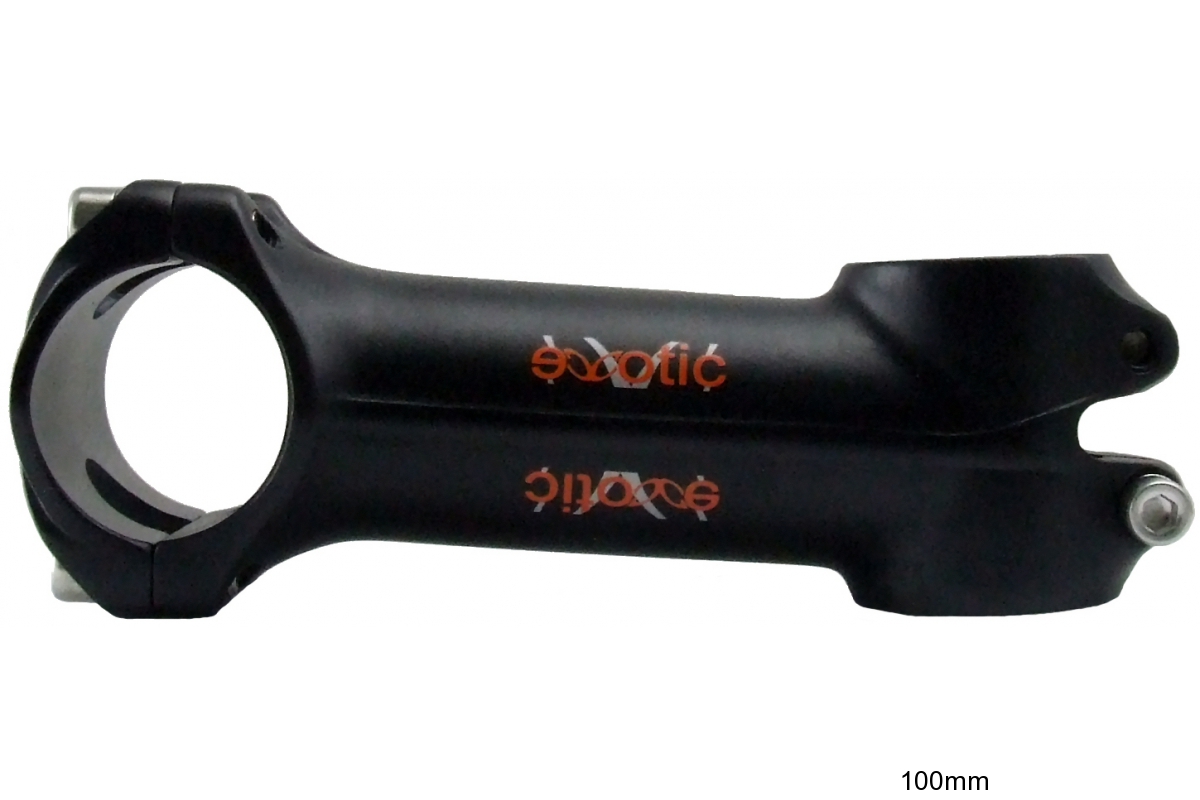

Lightest stem of the eXotic Meta series. Made by 3D forging from 7050 alloy giving the best combination of strength, toughness and resistance to stress corrosion cracking (SCC).

Opposing steerer clamp bolts help to even out clamping loads, allow easier fitting by tightening one side & then the other and can offer better knee clearance.

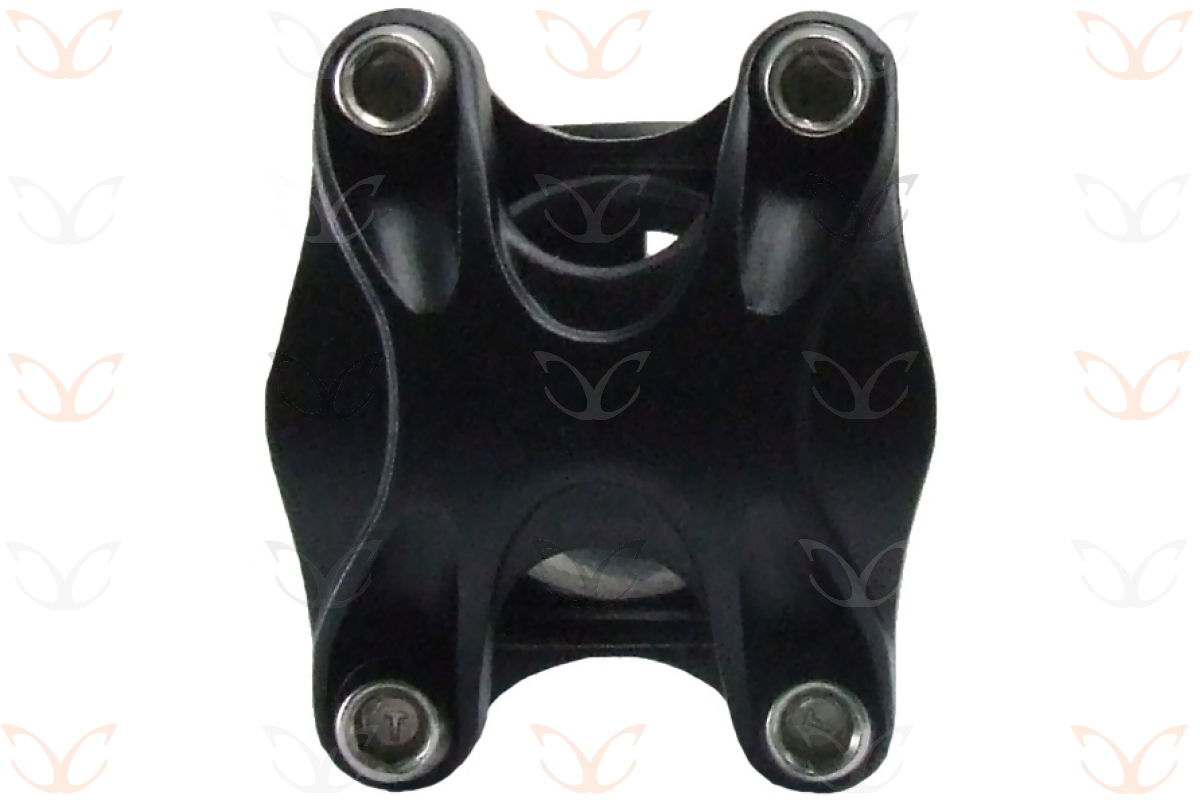

The four bolt rounded edge faceplate is designed to reduce stress at the edge of the clamp which is great for carbon bars.

Specifications:

  • Alloy: 3-D forged 7050 T73
  • Fork steerer diameter: 28.6mm (1 1/8 Inch)
  • Handlebar clamp: 31.8mm (Oversize)
  • Angle: +/-5 degree
  • Stack height: 38mm
  • Suitable for: MTB or Road

    Weightgm
    80mm115
    90mm120
    100mm125
    All weights include 6 x high grade M5 stainless steel bolts @24gm



  • UPC: 5055429912941
    Sponsorships and Product Reviews
    Only show in stock items
    Ship To

    code
    CC-
    M163108
    31.8, 80mm



    US $55.59 Out of Stock

    M163110
    31.8, 100mm



    US $51.89

    M163109
    31.8, 90mm
    50% Off (already discounted). Minimum Quantity 2


    US $27.14 ea
